起重吊索具系列 S(6)级四肢链条吊索具
发表时间：2011-10-18 22:46

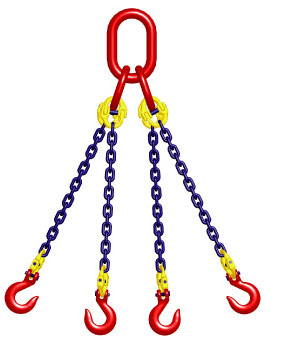

S(6)级四肢链条索具
| S(6)级四肢链条索具 | |
|
|
| 产品型号 | 链条直径 | 额定载荷 | 主吊环 | 链条重量 | |
| α≤45° | 45°＜α≤60° | AxBxd | |||
| LSJ(H)4-6 | 6 | 2.1 | 1.5 | 80x150x20 | 0.79 |
| LSJ(H)4-8 | 8 | 3.1 | 2.2 | 90x160x24 | 1.38 |
| LSJ(H)4-10 | 10 | 5.2 | 3.7 | 100x190x28 | 2.2 |
| LSJ(H)4-12 | 12 | 7.3 | 5.2 | 100x190x28 | 3.1 |
| LSJ(H)4-14 | 14 | 10.5 | 7.5 | 120x230x34 | 4.13 |
| LSJ(H)4-16 | 16 | 12.6 | 9 | 135x250x38 | 5.63 |
| LSJ(H)4-18 | 18 | 16.8 | 12 | 140x270x42 | 6.85 |
| LSJ(H)4-20 | 20 | 21 | 15 | 160x310x46 | 8.6 |
| LSJ(H)4-22 | 22 | 25.2 | 18 | 180x330x52 | 10.2 |
| LSJ(H)4-24 | 24 | 29.4 | 21 | 180x330x52 | 12.78 |
| LSJ(H)4-26 | 26 | 35.7 | 25.5 | 180x330x56 | 14.87 |
| LSJ(H)4-30 | 30 | 46.2 | 33 | 210x410x62 | 19.6 |
| LSJ(H)4-34 | 34 | 60.9 | 43.5 | 240x410x76 | 22.7 |
