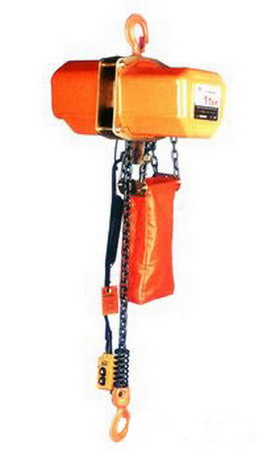

电动葫芦系列 TOYO环链电动葫芦
|
Model |
HHXG-05A |
HHXG-10A |
HHXG-20A |
HHXG-30A |
|
|
Capacity tons |
0.5 |
1.0 |
2.0 |
3.0 |
|
|
Standard lift m |
3 |
3 |
3 |
3 |
|
|
Running test load kn |
6.3 |
12.5 |
25 |
37.5 |
|
|
Motor power kw |
0.8 |
1.1 |
1.1 |
1.1 |
|
|
No.of columns of load chain |
1 |
1 |
2 |
3 |
|
|
Load chain diameter mm |
7.1 |
7.1 |
7.1 |
7.1 |
|
|
Lift speed m/min |
5.80 |
4.30 |
2.15 |
1.43 |
|
|
Dimensions (mm) |
A |
150 |
150 |
173 |
186 |
|
B |
112 |
112 |
90 |
77 |
|
|
C |
250 |
250 |
250 |
250 |
|
|
D |
245 |
245 |
245 |
245 |
|
|
K |
27 |
30 |
38 |
56 |
|
|
Ø |
45 |
50 |
65 |
70 |
|
|
F |
85 |
105 |
136 |
164 |
|
|
J |
17 |
26 |
36 |
45 |
|
|
P |
14 |
15 |
22 |
30 |
|
|
L |
550 |
590 |
770 |
775 |
|
|
Net weight kg |
44 |
46 |
60 |
68 |
|
TOYO环链电动葫芦的优点;
★ 环链电动葫芦有高效、质轻电机，无石棉刹车系统，低能耗。
★ 环链电动葫芦有冲压钢构壳体，轻巧而坚固。
★ 环链电动葫芦有高强度安全吊钩，承受意外超负荷冲击不会发生断裂，只是逐渐变形。
★ 环链电动葫芦有轻巧、美观而耐用的塑制链带。
★ 环链电动葫芦有吊上吊下都有极限开关装置，使电机自动停止，反防止链条超出，确保安全。
★ 环链电动葫芦有特殊电线装置，当电源接线错误时，控制电路无法动作。

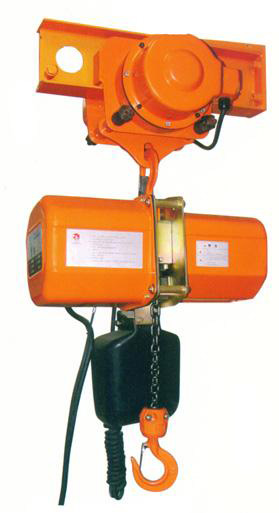

带小车电动葫芦
|
Model |
Capacity |
Test（t） |
Standard（m） |
Specificationof load chain |
Strands |
Motor |
Motor |
Lifting speed（m/min） |
Running Speed of trolley (m/min) |
I-Type steel for trolley GB706-88 |
Net weight (kg) |
|
HHDG-A0.5 |
0.5 |
0.63 |
3 |
7.1×21 |
1 |
0.8 |
0.2 |
5.8 |
20 |
12.6~28b |
77 |
|
HHDG-A1 |
1 |
1.25 |
3 |
7.1×21 |
1 |
1.1 |
0.3 |
4.3 |
20 |
12.6~28a |
84 |
|
HHDG-A2 |
2 |
2.5 |
3 |
7.1×21 |
2 |
1.1 |
0.3 |
2.15 |
20 |
12.6~28a |
95 |
|
HHDG-A3 |
3 |
3.75 |
3 |
7.1×21 |
3 |
1.1 |
0.4 |
1.43 |
18 |
20b~45b |
136 |
|
Model |
Volrage |
Freque ncy(hz) |
Current when |
Currentwhen full-loaded(a) |
Continuity rate |
Times of contacting per hour(n) |
||||
|
|
|
hoist |
trolley |
hoist |
trolley |
hoist |
trolley |
hoist |
trolley |
|
|
HHDG-A0.5 |
380 |
50 |
2 |
0.9 |
2.5 |
1.5 |
40 |
40 |
240 |
240 |
|
HHDG-A1 |
380 |
50 |
2 |
0.9 |
3 |
1.5 |
40 |
40 |
240 |
240 |
|
HHDG-A2 |
380 |
50 |
2 |
0.9 |
3 |
1.5 |
40 |
40 |
240 |
240 |
|
HHDG-A3 |
380 |
50 |
3.3 |
0.95 |
4 |
1.5 |
40 |
40 |
240 |
240 |
