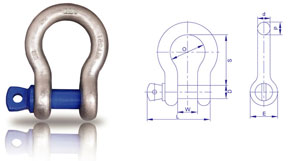

起重卸扣系列 弓型卸扣
弓型卸扣：
额定载荷：T8级2t-80t; S6级0.5t-55t。
T8级为优质合金结构钢；S6级为合金结构钢。
最大试验载荷为额定工作载荷的2倍，最小破断载荷为额定工作载荷的4倍。
2t-80tT8级卸扣比相同尺寸的S6级卸扣承载能力高40%-100%。
产品符合ISO2415-2004规定的技术要求和检测方法
T(8)级
|
|
|
|
|
|
|
|
|
|
|
|
产品型号 |
额定载荷 |
W |
D |
d |
E |
P |
S |
L |
自重 |
|
T-BW2-3/8 |
2 |
17 |
12 |
9.5 |
23 |
9.5 |
36.5 |
52.5 |
0.13 |
|
T-BW2.5-7/16 |
2.5 |
19 |
14 |
11 |
27 |
11 |
43 |
62 |
0.21 |
|
T-BW3.25-1/2 |
3.25 |
20.5 |
16 |
13 |
30 |
13 |
48 |
70.5 |
0.3 |
|
T-BW5-5/8 |
5 |
27 |
20 |
16 |
38 |
17.5 |
60.5 |
88 |
0.64 |
|
T-BW7-3/4 |
7 |
32 |
22 |
19 |
46 |
20.5 |
71.5 |
102.5 |
1.09 |
|
T-BW9.5-7/8 |
9.5 |
36.5 |
27 |
22.5 |
53 |
24.5 |
84 |
121 |
1.7 |
|
T-BW12.5-1 |
12.5 |
43 |
30 |
25.5 |
60.5 |
27 |
95 |
139 |
2.5 |
|
T-BW15-1 1/8 |
15 |
46 |
33 |
29.5 |
68.5 |
32 |
108 |
154 |
3.79 |
|
T-BW18-1 1/4 |
18 |
51.5 |
36 |
33 |
76 |
35 |
119 |
170.5 |
4.89 |
|
T-BW21-1 3/8 |
21 |
57 |
39 |
36 |
84 |
38 |
133.5 |
186.5 |
7.04 |
|
T-BW30-1 1/2 |
30 |
60.5 |
42 |
39 |
92 |
41 |
146 |
201 |
8.35 |
|
T-BW40-1 3/4 |
40 |
73 |
52 |
47 |
106.5 |
57 |
178 |
244 |
13.72 |
|
T-BW50-2 |
50 |
82.5 |
60 |
53 |
122 |
61 |
197 |
275 |
20.33 |
|
T-BW80-2 1/2 |
80 |
105 |
72 |
69 |
144.5 |
79.5 |
267 |
346 |
40.92 |
S(6)级
|
|
|
|
|
|
|
|
|
|
|
|
产品型号 |
额定载荷 |
W |
D |
d |
E |
P |
S |
L |
自重 |
|
S-BW0.5-1/4 |
0.5 |
12 |
8 |
6.5 |
15.5 |
6.5 |
29 |
36.5 |
0.05 |
|
S-BW0.75-5/16 |
0.75 |
13.5 |
10 |
8 |
19 |
8 |
31 |
44.5 |
0.1 |
|
S-BW1-3/8 |
1 |
17 |
12 |
9.5 |
23 |
9.5 |
36.5 |
52.5 |
0.13 |
|
S-BW1.5-7/16 |
1.5 |
19 |
14 |
11 |
27 |
11 |
43 |
62 |
0.21 |
|
S-BW2-1/2 |
2 |
20.5 |
16 |
13 |
30 |
13 |
48 |
70.5 |
0.3 |
|
S-BW3.25-5/8 |
3.25 |
27 |
20 |
16 |
38 |
17.5 |
60.5 |
88 |
0.64 |
|
S-BW4.75-3/4 |
4.75 |
32 |
22 |
19 |
46 |
20.5 |
71.5 |
102.5 |
1.09 |
|
S-BW6.5-7/8 |
6.5 |
36.5 |
27 |
22.5 |
53 |
24.5 |
84 |
121 |
1.7 |
|
S-BW8.5-1 |
8.5 |
43 |
30 |
25.5 |
60.5 |
27 |
95 |
139 |
2.5 |
|
S-BW9.5-1 1/8 |
9.5 |
46 |
33 |
29.5 |
68.5 |
32 |
108 |
154 |
3.79 |
|
S-BW12-1 1/4 |
12 |
51.5 |
36 |
33 |
76 |
35 |
119 |
170.5 |
4.89 |
|
S-BW13.5-1 3/8 |
13.5 |
57 |
39 |
36 |
84 |
38 |
133.5 |
186.5 |
7.04 |
|
S-BW17-1 1/2 |
17 |
60.5 |
42 |
39 |
92 |
41 |
146 |
201 |
8.35 |
|
S-BW25-1 3/4 |
25 |
73 |
52 |
47 |
106.5 |
57 |
178 |
244 |
13.72 |
|
S-BW35-2 |
35 |
82.5 |
60 |
53 |
122 |
61 |
197 |
275 |
20.33 |
|
S-BW55-2 1/2 |
55 |
105 |
72 |
69 |
144.5 |
79.5 |
267 |
346 |
40.92 |
本公司还有大吨位卸扣。如果您所需要的卸扣吨位再大，可以与我司联系！
~
