钢丝绳/起重链条系列 压制钢丝绳吊索具
压制钢丝绳索具
VAF06-L
V-----钢丝绳索具 teel wite rope sling
A-----压制型式（B-铝合金套管为直形，无套环）
ssed type (with straight aluminium ferrule without thimble)
F-----钢丝绳直径(F-麻芯，W-钢芯)
Steel wire rope cope(F-FC，W-IWRC)
06-----钢丝绳直径
Steel wire rope core diameter
L-----钢丝绳有效长度
fective length of steel wire rope
本表工作载荷所有钢丝绳规格为：
Φ6-Φ60 采用6×37（b）-1670、
Φ62-Φ120 采用8×61（b）-1670、
Φ122-Φ190采用8×91（ab）-1670；
The specification of the steel wire rope used by the following working load in the table:
Dia6mm-60mm use the construction of 6*37(b)-1670
Dia 62mm-120mm use the construction of 8*61(b)-1670
Dia 122mm-190mm use the construction of 8*91(ab)-1670
|

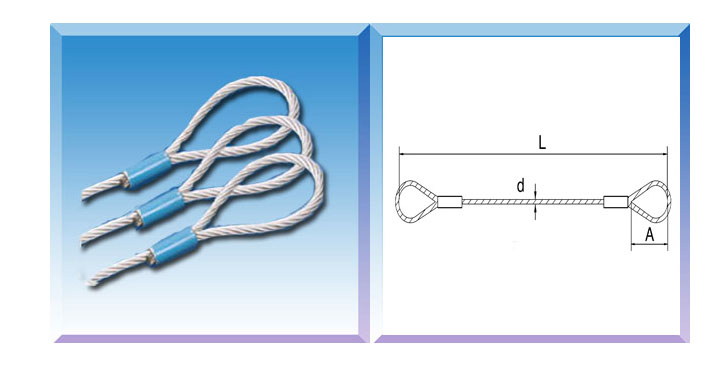

产品型号 Producs type |
钢丝绳直径 Dia of rope(d) （mm） |
额定载荷 Working load limit |
近似套长A Approx.eye Ength A (mm) |
||
|
麻芯 FC |
钢芯 IWR |
麻芯 kN |
钢芯 kN |
||
|
VAF06 |
VBW06 |
6.00 |
3.20 |
3.40 |
180 |
|
VAF07 |
VBW07 |
7.00 |
4.30 |
4.70 |
190 |
|
VAF08 |
VBW08 |
8.00 |
5.70 |
6.10 |
210 |
|
VAF09 |
VBW09 |
9.00 |
7.20 |
7.80 |
230 |
|
VAF10 |
VBW10 |
10.0 |
8.90 |
6.90 |
230 |
|
VAF11 |
VBW11 |
11.0 |
11.0 |
12.0 |
250 |
|
VAF12 |
VBW12 |
12.0 |
13.0 |
14.0 |
260 |
|
VAF13 |
VBW13 |
13.0 |
15.0 |
16.0 |
260 |
|
VAF14 |
VBW14 |
14.0 |
17.0 |
19.0 |
280 |
|
VAF16 |
VBW16 |
16.0 |
23.0 |
24.0 |
320 |
|
VAF18 |
VBW18 |
18.0 |
29.0 |
31.0 |
360 |
|
VAF20 |
VBW20 |
20.0 |
35.0 |
38.0 |
400 |
|
VAF22 |
VBW22 |
22.0 |
43.0 |
46.0 |
440 |
|
VAF24 |
VBW24 |
24.0 |
51.0 |
55.0 |
480 |
|
VAF26 |
VBW26 |
26.0 |
60.0 |
65.0 |
520 |
|
VAF28 |
VBW28 |
28.0 |
69.0 |
75.0 |
560 |
|
VAF30 |
VBW30 |
30.0 |
80.0 |
86.0 |
600 |
|
VAF32 |
VBW32 |
32.0 |
91.0 |
98.0 |
640 |
|
VAF34 |
VBW34 |
34.0 |
102 |
110 |
680 |
|
VAF36 |
VBW36 |
36.0 |
115 |
124 |
720 |
|
VAF38 |
VBW38 |
38.0 |
128 |
138 |
760 |
|
VAF40 |
VBW40 |
40.0 |
142 |
153 |
800 |
|
VAF42 |
VBW42 |
42.0 |
157 |
169 |
840 |
|
VAF44 |
VBW44 |
44.0 |
172 |
185 |
880 |
|
VAF46 |
VBW46 |
46.0 |
187 |
203 |
920 |
|
VAF48 |
VBW48 |
48.0 |
203 |
220 |
960 |
|
VAF50 |
VBW50 |
50.0 |
221 |
240 |
1000 |
|
VAF52 |
VBW52 |
52.0 |
239 |
259 |
1040 |
|
VAF54 |
VBW54 |
54.0 |
258 |
279 |
1080 |
|
VAF56 |
VBW56 |
56.0 |
277 |
301 |
1120 |
|
VAF58 |
VBW58 |
58.0 |
298 |
322 |
1160 |
|
VAF60 |
VBW60 |
60.0 |
319 |
345 |
1200 |
