起重吊钩/吊环系列 小眼滑钩

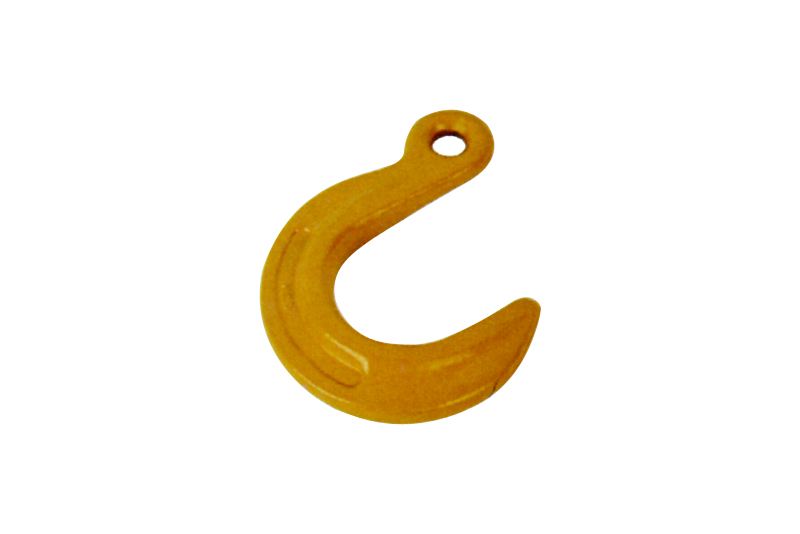

小眼滑钩
|
规格 SIZE |
工作载荷 H-324 |
WLL.LBS A-324 |
Ø mm |
R mm |
L mm |
M mm |
E mm |
自重 WEIGHT..KG |
|
1/4 |
1950 |
2750 |
12.7 |
65 |
92 |
71 |
23 |
0.2 |
|
5/16 |
2875 |
4300 |
16 |
74 |
106 |
77 |
26 |
0.3 |
|
3/8 |
4000 |
5250 |
18 |
86.5 |
124 |
89 |
33 |
0.45 |
|
7/16 |
5000 |
7000 |
20.5 |
98.5 |
142 |
108 |
40 |
0.68 |
|
1/2 |
6500 |
9000 |
23 |
109.5 |
156 |
116.5 |
43 |
1.00 |
|
5/8 |
9520 |
13500 |
28.7 |
132.5 |
208 |
|
50.8 |
2.8 |
|
3/4 |
12500 |
19250 |
35 |
147 |
238 |
|
54 |
3.2 |
